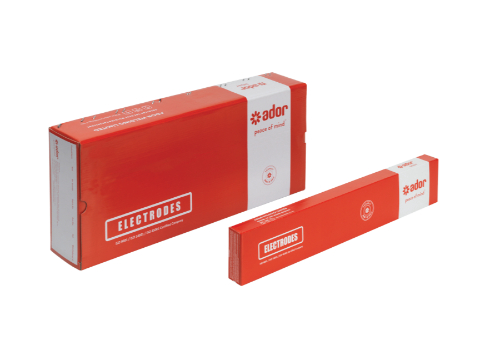

Ador Tenalloy Z Plus E7018-1 Electrode: Fully KOC & KNPC Approved for Critical Structural and Pipe Welding

In high-pressure refinery networks, cross-country transmission pipelines, and offshore oil and gas infrastructure throughout Kuwait, sourcing verified, certified consumables is paramount to safeguarding structural integrity and meeting strict regulatory frameworks. Using non-approved or standard-grade filler metals on critical installations exposes projects to severe compliance bottlenecks and structural failures. The Tenalloy Z Plus E7018-1  low-hydrogen iron-powder welding electrode, precision-manufactured in India by Ador Welding Limited, represents a premium, fully vetted solution carrying formal KOC (Kuwait Oil Company) and KNPC (Kuwait National Petroleum Company) approvals. Offered with complete technical traceability through AGRIM Projects, this high-performance AWS E7018-1 electrode is specifically engineered to survive severe service environments and complex structural loading.

The main commercial and mechanical advantage of incorporating the Tenalloy Z Plus E7018-1 rod into your routine fabrication or asset refurbishment workflows is its pre-approved vendor list status. Because it holds verified regulatory approvals, quality control managers, pipeline inspectors, and warehouse procurement officials can seamlessly clear material receiving inspections without processing delays. This established compliance framework ensures that every batch delivered across Kuwait meets radiographic quality standards while preserving exceptional impact properties.

Advanced Metallurgy: Premium Low-Hydrogen Control with Sub-Zero Toughness – Tenalloy Z Plus E7018-1

The distinct chemical and physical engineering behind the Tenalloy Z Plus E7018-1 electrode focuses on a strictly controlled basic coating containing high-purity iron powder. Upon deposition, the electrode creates a beautifully refined carbon-manganese steel matrix characterized by low diffusible hydrogen levels ($<5\text{ ml}/100\text{ g}$ of weld metal), which eliminates the risk of underbead cracking or hydrogen-induced cold cracking in thick-walled, heavy structures.

The tailored chemical design of this Ador consumable yields substantial performance benefits:

• Exceptional Low-Temperature Impact Resilience: Engineered to withstand extreme sub-zero operational profiles, it maintains superior Charpy V-notch fracture toughness down to $-45^\circ\text{C}$ to $-46^\circ\text{C}$, outperforming standard E7018 variants in high-stress cryogenic utility scenarios.
• Optimized Position Handling for Pipe Joints: The specialized basic flux coating formulation creates a highly stable, uniform arc stream that excels during challenging positional welds, including 5G, 6G, and complex multi-pass 6GR offshore T-Y-K branch connections.
• High Metallurgical Purity: It features tightly restricted Sulfur ($S \le 0.03\%$) and Phosphorus ($P \le 0.03\%$) boundaries, providing highly sound, ductile weld beads that resist hot-cracking under intense joint restraint.

Handling Performance and Radiographic Excellence on Shop Floors – Tenalloy Z Plus E7018-1

Beyond its regulatory compliance, Tenalloy Z Plus E7018-1 offers an operator-friendly profile with smooth metal transfer on both Alternating Current (AC) and Direct Current Electrode Positive (DCEP) polarities. The arc initiates cleanly and restrikes effortlessly, which minimizes overall defect formation at weld stop-and-start points.

• Effortless Slag Removal: The basic iron-powder slag cools uniformly, contracts quickly, and detaches cleanly with minor mechanical intervention. This radically cuts down inter-pass grinding and cleaning intervals during thick-walled structural applications.
• Defect-Free Radiographic Quality: The stable arc and smooth pool behavior virtually eliminate gas entrapment and slag inclusion risks, ensuring all weld layers effortlessly pass non-destructive testing (NDT), including ultrasonic and X-ray inspections.
• Vacuum Packaging Available: To prevent moisture pickup from local atmospheric humidity, these electrodes can be supplied in premium vacuum-packed or moisture-resistant packaging, ensuring they remain ready to use straight from the box without immediate re-baking cycles.

Primary Industrial and Energy Sector Applications of Tenalloy Z Plus E7018-1

Thanks to its premium regulatory status and elite fracture toughness, this product from Ador Welding is extensively deployed across top-tier projects:

1. Refinery and Petrochemical Process Piping: Ideal for heavy-wall process pipelines, distribution manifolds, and downstream hydrocarbon processing networks.
2. Offshore Platform and Shipbuilding Assemblies: Extensively specified for fabricating offshore drilling jackets, platform decks, ship hull frames, and marine structural components.
3. LPG and Cryogenic Storage Tanks: Used to join heavy-gauge carbon steels for storage vessels, boilers, and low-temperature fluid containment units.
4. Bridges and Heavy Infrastructure Construction: Perfect for civil infrastructure exposed to dynamic mechanical loads, high wind forces, or continuous structural vibration.

Technical Specifications Matrix of Tenalloy Z Plus E7018-1

Secure Your Sourcing with AGRIM Projects

Navigating the documentation demands of the Kuwait energy sector requires a structured supply partner. At AGRIM Projects, we back our inventory of certified Tenalloy Z Plus E7018-1 stock with full manufacturer test reports, batch-specific chemical analyses, and authentic regulatory clearance sheets. Reach out to our technical procurement specialists today to request volume quotes and keep your on-site fabrication lines moving safely.
